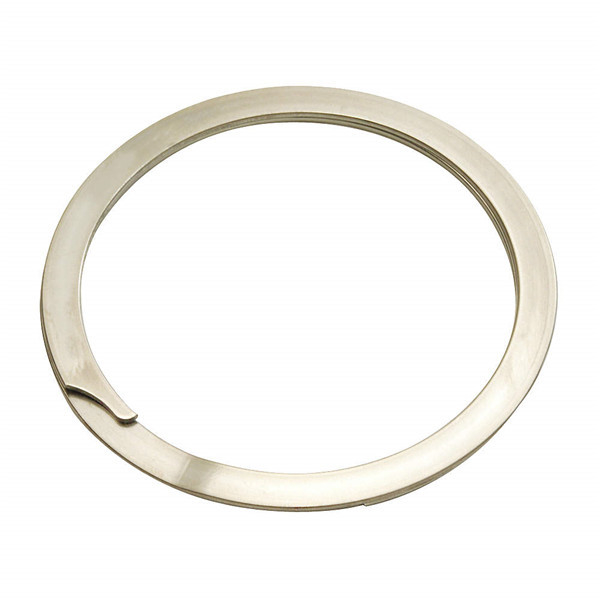

Medium Duty 2 - Turn Internal Spiral Retaining Ring Carbon / Stainless Steel Material

Medium Duty  2 - Turn Internal Spiral Retaining Ring Carbon / Stainless Steel Material
Medium Duty  2 - Turn Internal Spiral Retaining Ring Carbon / Stainless Steel Material Medium Duty  2 - Turn Internal Spiral Retaining Ring Carbon / Stainless Steel Material Medium Duty  2 - Turn Internal Spiral Retaining Ring Carbon / Stainless Steel Material

Large Image :  Medium Duty 2 - Turn Internal Spiral Retaining Ring Carbon / Stainless Steel Material

Product Details:
Place of Origin: China
Brand Name: lisprings
Certification: ISO9001 TS16949
Model Number: WKT
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Bulk packaged or Customize
Delivery Time: 7 work days
Supply Ability: 10000000
Detailed Product Description
Stock: More Than 2000 Types Name: Medium Duty 2-Turn Internal Spiral Retaining Rings
Size: 5mm-1000mm Tooling Charge: Free
Used For: Oil & Gas , Wind Power Material: Carbon Steel Or Stainless Steel
High Light:

internal retaining snap ring

,

stainless retaining rings

Medium Duty 2-Turn Internal Spiral Retaining Rings Carbon or Stainless Steel Material



Description:



Spiral Retaining Rings have No Ears in your assembly! Spiral Retaining Rings are manufactured by coiling the ring from flat wire. This unique process produces a retaining ring that has no protruding ears or burrs to interfere with your assembly. Because coiling produces a retaining ring with no scrap, the Spiral Retaining Ring can be economically produced in carbon steel, stainless steel, coppers, and many other alloys.

No gap - 360°retaining surface

. No protruding ears interfere with mating components (uniform cross-section)

. Economically produced in stainless steel because the coiling process produces no scrap

. No -Charge on custom designs

. Easy installation and removal





Material:



OIL TEMPERED(SAE1070-1090), HARD DRAWN SAE 1060 - 1075, stainless steel 304,316,631,17-7PH(SUS), beryllium copper, phosphor copper,65Mn, A-286 ,

Inconel Alloy X-750 ,X-718 ,Elgiloy ,MONEL K-500, MONEL 400 etc





Processing Steps

Design →Drawing→ Flat the wire → CNC Machining → Heat treatment → Surface → Finishing → Quality Inspection → Packing



Primary Competitive Advantage

  • Over 3000 types Wave springs and Spiral rings standard parts in stock
  • Prompt Delivery   Quality Approvals

  • Service       Sample Available





About Us:



Lisheng Spring Company was established in 1993. Lisheng spring is a professional manufacturer for Wave springs in China. Lisheng spring specializes in the manufacture of springs and retaining rings, such as wave springs, Spiral retaining rings, Laminar Sealing Rings and many other products, the row materials are imported from Japan, Germany, and the U.S. ,We select the correct material to guarantee satisfying products. Lisheng spring has become one of the leading companies in the all types of wave springs and spiral retainings with its high-quality and high-precise production capability. We firmly believe that serving our clients will bring us the satisfaction. We always desired. We will continue to provide our clients with high quality products and best service.



Medium Duty  2 - Turn Internal Spiral Retaining Ring Carbon / Stainless Steel Material 0





Specification:



Part Number Housing Diameter(in) Outside Diameter(in) Radial Wall(in) Thickness(in) Groove Diameter(in) Groove Width(in) Groove Yield(lb) Ring Shear (lb)
WKT-50 0.5 0.529 0.045 0.035 0.524 0.039 420 2530
WKT-51 0.512 0.541 0.045 0.035 0.536 0.039 430 2590
WKT-56 0.562 0.597 0.045 0.035 0.592 0.039 600 2840
WKT-62 0.625 0.665 0.045 0.035 0.659 0.039 750 3160
WKT-68 0.688 0.73 0.055 0.035 0.724 0.039 880 3480
WKT-75 0.75 0.796 0.055 0.035 0.79 0.039 1060 3790
WKT-77 0.777 0.825 0.065 0.042 0.819 0.046 1150 4720
WKT-81 0.812 0.864 0.065 0.042 0.857 0.046 1320 4930
WKT-86 0.866 0.919 0.065 0.042 0.912 0.046 1410 5260
WKT-87 0.875 0.929 0.065 0.042 0.922 0.046 1480 5310
WKT-90 0.901 0.957 0.065 0.042 0.95 0.046 1590 5470
WKT-93 0.938 0.997 0.075 0.042 0.989 0.046 1720 5690
WKT-100 1 1.063 0.075 0.042 1.055 0.046 1980 6070
WKT-102 1.023 1.087 0.075 0.042 1.079 0.046 2030 6210
WKT-106 1.062 1.129 0.078 0.05 1.12 0.056 2180 7010
WKT-112 1.125 1.195 0.078 0.05 1.185 0.056 2390 7420
WKT-118 1.188 1.26 0.088 0.05 1.25 0.056 2600 7840
WKT-125 1.25 1.33 0.093 0.05 1.32 0.056 3090 8250
WKT-131 1.312 1.395 0.093 0.05 1.385 0.056 3430 8660
WKT-137 1.375 1.461 0.098 0.05 1.45 0.056 3690 9070
WKT-143 1.438 1.526 0.103 0.05 1.515 0.056 3960 9490
WKT-145 1.456 1.546 0.108 0.05 1.535 0.056 4120 9610
WKT-150 1.5 1.591 0.108 0.05 1.58 0.056 4240 9900
